The LaRA-AS system
(Lamborghini "RA" Acquisition System) is a proprietary 32 bit diagnostic system developed for Lamborghini to further enhance and control GFA, LIE and other body control modules.

It consists of the following items:

Laptop Computer (generally factory preconfigured Panasonic though book
Programmed LaRA-AS electronic Interface
3 Cables specifically for Gallardo pre 2009, Murcielago and 2012+ Gallardo's
Encryption Key used to operate the software that supports up to 2012 Models

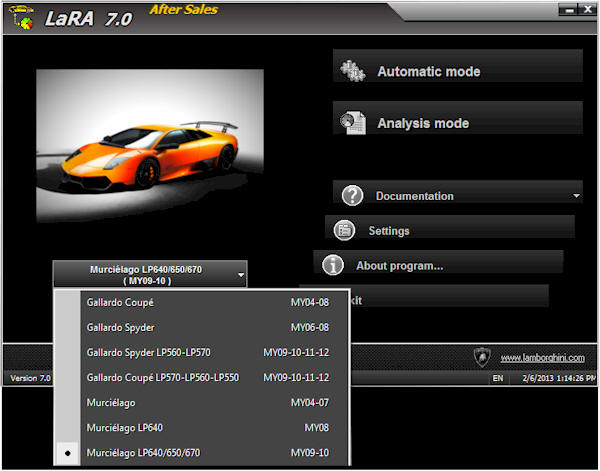

LarAs-7.0-Screenshot

The LaRA-AS system was developed to allow dealerships secured limited access to onboard computer parameters and functionality. It allows dealer capabilities to access the Lamborghini online portal system. If you are not a Lamborghini Dealership this functionality is not available to you, such as ECU or Key programming.

Functions (Just some not all*)  Any questions please contact us:

1. ECU Identification (Part number, Software version and status)
2. Erase Fault Memory codes
3. Egear Snap file reading
4. Control Unit Identification (Displays a list of every control unit in the car, including the part number and software version)
5. Setting the ABS/ESP control unit "AirBag" (Gallardo) (Murci and Diablos use the ABS/Airbag separate software and hardware)
6. Setting the A/C control Unit Functions
7. E-gear Snap
8. Actuator testing (Waring lights, Antitheft and door closure, lights, wiper and nozzels test, ESP lock and unloc test, Radio speakers, Navigation speaker, TV Tuner test, Climate control flap test
9. Egear flash programming (Pump bleeding, read and write clutch functions)
10. Transport and normal setting (for transporting vehicle)
11. E-gear PIS valve procedure
12. Gallardo Spyder Soft top calibration
13. Gallardo Spyder and Murci Roadster Roll over protection testing
14. RNSE Navigation Radio functions
15. Market Changing (Turing on and off the DTRL (Daytime Running lights)
16. Initial Cluster and Mileage Setting
17. Installation of most new ECU (except security related)
18. Real time data capture



Late Model Murcielago functions
** The LarAS replaces the LDAS in many functions and includes the following tests

1. Throttle body adaptation
2. Electric Vacuum pump testing
3. Load control valve adaptation
4. Oxygen sensor thrust test
5. Tank bleed valve diagnosis
6. Intake camshaft adjustment solenoid valves diagnosis
7. Exhaust camshaft adjustment solenoid valves diagnosis
8. Diagnosis of the exchange of oxygen sensors downstream of the catalytic converter
9. Diagnosis of the oxygen sensor upstream of the cats
10. Diagnosis of the tank seal (LDP) & Secondary air system
11. Detection of irregular engine ignition
12. Misfire
13. Knocking sensor
14. Lambda oxygen sensor
15. rpm adjustment 7. Throttle body control
16. Exhaust noise reduction valve 9. Special MWB
17. Variable valve timing 11. Compatibility
18. Direct Fuel injection IDS
19. Torque request
20. CAN communication
21. Cooling
22. Starter control
